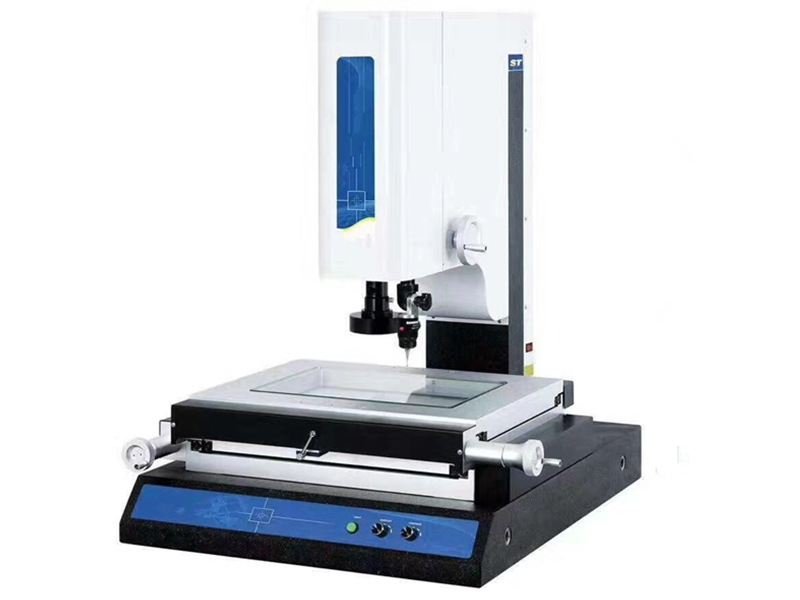

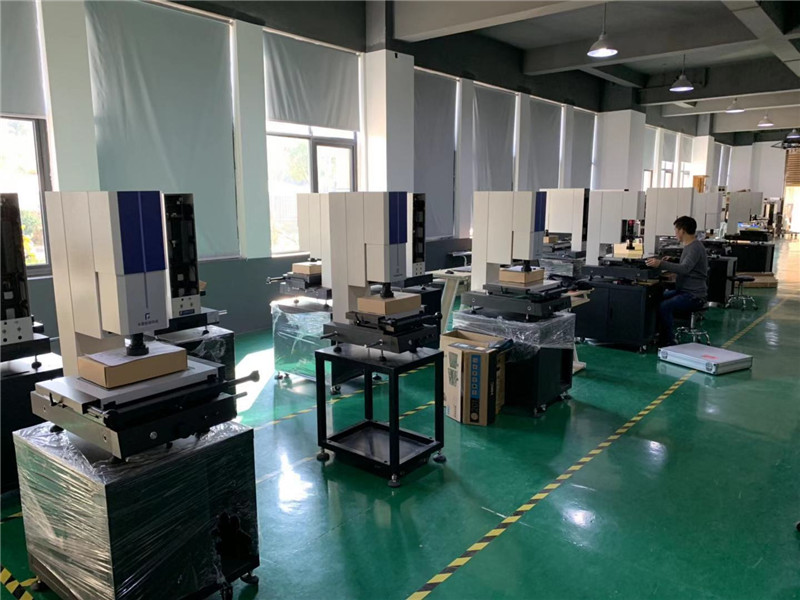

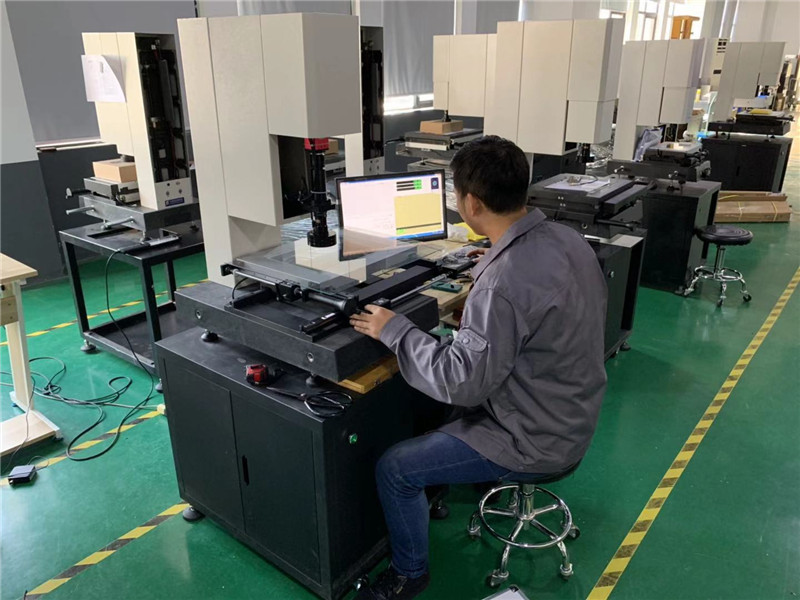

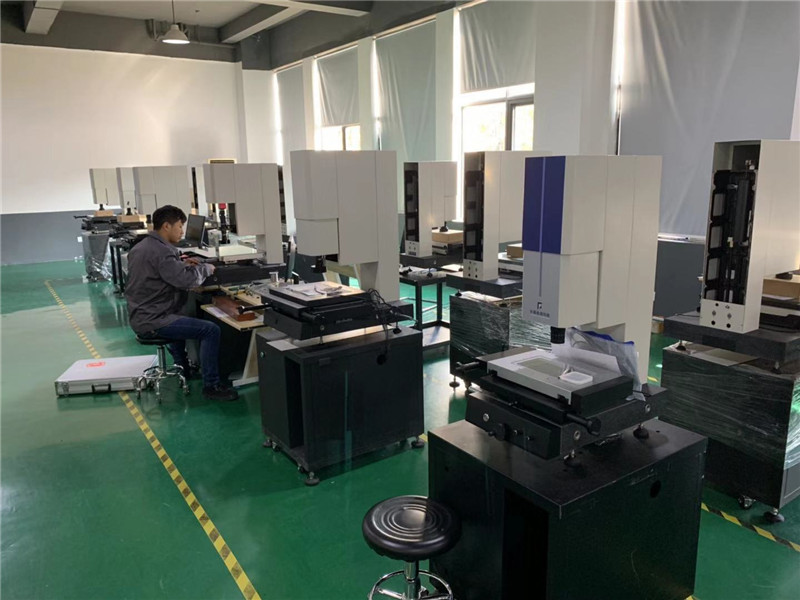

    影像测量仪TM-2010\3020\4030\5040

    所属分类:影像测量仪
    产品概述:A. 基本参数 Basic Parameter设备名称Equipment Name手动影像测量仪Manual Video Measuring Machine型号Model行程(mm)Range外形尺寸(mm)External Size整机重量(kg)Weight机台承重(kg)Load-bearingTM404003002001200850160026035测量精度AccuracyE2XY=(3+L*/200…

    A. 基本参数  Basic Parameter

             仪器规格

    技术参数

    TMVB-2010

    TMVB-3020

    TMVB-4030

    TMVB-5040

    测量范围

    X(mm)

    200

    300

    400

    500

    Y(mm)

    100

    200

    300

    400

    Z(mm)

    200

    200

    200

    200



    工作台

    金属台面尺寸(mm)

    360ⅹ260

    460ⅹ360

    560ⅹ460

    710ⅹ610

    玻璃台面尺寸(mm)

    229ⅹ129

    329ⅹ229

    429ⅹ329

    529ⅹ429

    仪器重量(kg)

    120

    180

    240

    400

    外型尺寸

    (长ⅹ宽ⅹ高)(mm)

    560ⅹ460ⅹ790

    710ⅹ560ⅹ790

    860ⅹ660ⅹ790

    1050810ⅹ790

    测量精度

    工作距离:95mm

    X、Y、Z光学尺分辨率0.001mm         X、Y坐标值误差≤(3+L/200)μm

    影像系统

    摄像机:色彩1/3CCD摄像机(美国)            变焦物镜倍率:0.7~4.5X

    视频总倍率:30X~230X                          物方视场:7-1.1mm

    光源采用LED冷光源,高品质调光板,亮度无极调节,光线细腻柔和。

    测量功能

    二维元素测量:点、线、圆、圆弧、椭圆、距离、角度、矩形、O形环、槽型、开云线、闭云线。

    组合元素测量:两点距离、两线距离、点到线距离、点到距离、线到圆距离、圆心距、两线交点、组合角度、角平分线、两线中线、三点组合圆、线圆切点。

    电源

    110V(AC)~220V(AC)             50HZ      总功率50W




    B.
    仪器特点 Feature

    n 外形紧凑美观,操作人性化

    Beautiful shape, humanized operation.

    n 00级高精度花岗岩底座,稳定可靠

    00 grade granite base , high accuracy and stability.

    LED surface /profile lighting to avoid parts deformation.

    n LED表面/轮廓冷光源,避免因发热造成测量工件的变形

    n 精密无牙螺母和光杆传动机构,无背隙,可快速移动

    Precise non-teeth nuts and polish rod drive mechanism, no backlash, fast movement.

    n 精密交叉滚柱导轨,运动平稳顺滑

    Precise intersect roller guide, smooth movement.

    高品质光学系统和CCD,确保画面品质优良

    High quality optical system and CCD.

    测量数据可导出至WordExcelAutoCAD

    Support forms style of Word, Excel, AutoCAD.

    n 可以按照客户需求提供定制化设计

    Provide customized design.



    C.  软件系统  Software System

    可测几何特征:点、线、圆、弧、样条曲线、椭圆、矩形、四边形、槽、R角、环、距离等。

    It can test the geometric element, including point, line, circle, arc, spline, ellipse, rectangle, slot, ring circle ,gap, distance, etc.

    构建:中心点、端点、交点、两点连线、平行线、垂线、切线、平分线、中心线、内切圆等。

    It can construct centered, endpoint, insect, connect, parallel, perpendicular, tangent, bisect, combine, etc.

    影像量测工具:绘图点、最近边缘点、聚焦点、圆形框取点、整体提取、多段提取、快速整理取圆。

    Video measuring tools include drawing point, closed point, focus point, pick point by circle, whole pick, multiple pick, edge trace.

    形位公差:直线度、圆度、位置度、平行度、垂直度、倾斜度、同心度等。

    It can provide tolerance measurement: include straightness, roundness, position, parallelism, perpendicularity, angularity and concentricity, etc.

    坐标系:夹具定位坐标系、点线、两点X、两点Y、两线;平移、旋转、手工调整坐标系。

    Coordinate system: Fixture positioning coordinate system, dotted line,  Two points determine the X axis, Two points determine the Y axis, two lines.  Translation,  rotation,  manually adjust the coordinate system.

    可输出WordExcelTXT报表和AutoCAD文件。

    Word, Excel, TXT and AutoCAD formats of output.

    n 三轴坐标便捷清零:清零后,方便坐标的查看比对。

    Coordinates convenient reset: after reset, convenient coordinate view.
