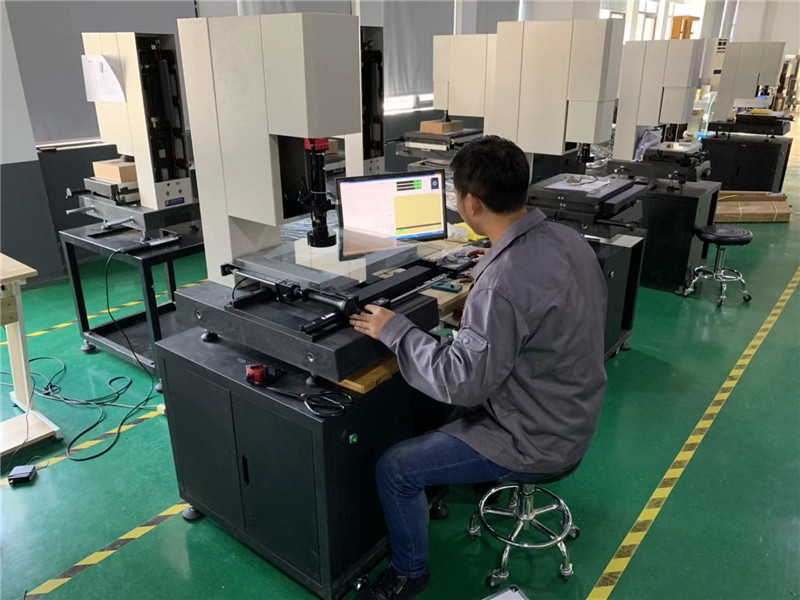

全自动影像测量仪TMA40E,行程400X300
A. 基本参数 Basic Parameter
|
设备名称 Equipment Name |
全自动影像测量仪 CNC Video Measuring Machine |
|||
|
型号 Model |
行程（mm） Range |
外形尺寸（mm） External Size |
整机重量（kg） Weight |
机台承重（kg） Load-bearing |
|
TMA40E |
400×300×200 |
1330×850×1650 |
360 |
30 |
|
测量精度 Accuracy |
E2XY=（2.8+L*/200）µm |
|||
|
E1Z=（5+L*/100）µm |
||||
|
*L表示测量长度，以毫米为单位 *L, the measured length in mm. |
||||
|
运行速度 Speed |
VXY=200mm/s |
|||
|
Vz=100mm/s |
||||
|
工作环境 Operating Environment |
温度Temperature：20℃±2℃ 温度变化Temperature Variation：<2℃/hr 湿度Humidity：40%～80% |
|||
|
电源要求 Electrical requirements |
电压 Voltage：220V±10% 50 Hz 功率 Power：1500W 用电设备要求接地可靠：接地电阻小于4欧姆 A good earth ground (less than 4 W) is required for reliable operation of the electrical controls. |
|||
B. 仪器特点 Features
n 三轴HIWIN精密直线导轨
Three-axis HIWIN precision linear guide.
n 三轴CNC控制，自动寻边、自动测量、自动对焦
Three-axis CNC control, auto-focus, auto-measurement, auto-finding edge.
n 精密花岗岩架构，满足高精度，高稳定性
Precision granite machines, high accuracy and stability.
n 全闭环伺服运动控制系统，速度快、精度高
Closed-loop servo-control system, high speed and precision.
n 全鼠标操作，易学易用
Easily operated with mouse.
n 手动变倍镜头，倍率轻松切换，变倍后无需重新校正
Manual optical lens, easy switch, no recalibration after zoom.
n 表面光源为程控5环8区LED冷光源，平行轮廓光源
Programmable LED lighting (5 rings 8 octants), parallel profile light.
n 根据客户工件的具体情况，提供不同的照明组合
Provide different lighting combination according to the parts particular case.
n 可聚焦测高，可加装接触式测头和激光测头模组
Automatic focus for height measurement. Touch probe and laser probe module can be optioned.
n 可以按照客户需求提供定制化设计
Provide customized design.
C. 软件系统 Software System
基本测量功能 Basic Measuring Function
n 可测几何特征：点、线、圆、弧、样条曲线、椭圆、矩形、四边形、槽、R角、环、距离等。
It can test the geometric element, including point, line, circle, arc, spline, ellipse, rectangle, slot, ring circle ,gap, distance, etc.
n 构建：中心点、端点、交点、两点连线、平行线、垂线、切线、平分线、中心线、内切圆等。
It can construct centered, endpoint, insect, connect, parallel, perpendicular, tangent, bisect, combine, etc.
n 影像量测工具：绘图点、最近边缘点、聚焦点、圆形框取点、整体提取、多段提取、快速整理取圆。
Video measuring tools include drawing point, closed point, focus point, pick point by circle, whole pick, multiple pick, edge trace.
n 形位公差：直线度、圆度、位置度、平行度、垂直度、倾斜度、同心度等。
It can provide tolerance measurement: include straightness, roundness, position, parallelism, perpendicularity, angularity and concentricity, etc.
n 坐标系：夹具定位坐标系、点线、两点X、两点Y、两线；平移、旋转、手工调整坐标系。
Coordinate system: Fixture positioning coordinate system, dotted line, Two points determine the X axis, Two points determine the Y axis, two lines. Translation, rotation, manually adjust the coordinate system.
